     1.56 39.7
1.63 41.4
1.61 41
.86 21.8
                                                                                                                                                              3.45 87.6
2.54 64.5
3/8-18 NPT INLET
                                                                                            1.02 25.8
                                      3/8-18 NPT OUTLET

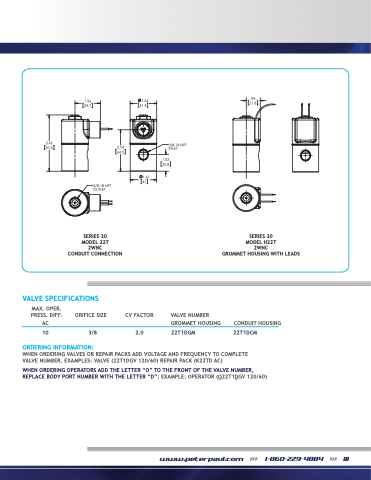

                                                              SERIES 20
SERIES 20
  SERIES 20 MODEL 22T
SERIES 20 MODEL 22T
MODEL 22T
MODEL H22T
2WNC
2WNC
GROMMET HOUSING WITH LEADS
CONDUIT COIL CONNECTION
CONDUIT CONNECTION
VALVE SPECIFICATIONS
2WNC
2WNC
GROMMET HOUSING WITH LEADS
    MAX. OPER. PRESS. DIFF.
AC
10
ORIFICE SIZE
3/8
CV FACTOR
2.0
VALVE NUMBER GROMMET HOUSING
22T1DGM
CONDUIT HOUSING
22T1DCM
 ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (22T1DGV 120/60) REPAIR PACK (K22TD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O22T1DGV 120/60)
