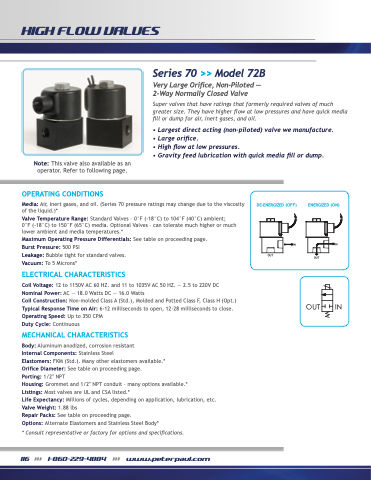

Page 118 - Peter Paul 2019 Catalog

HIGH FLOW VALVES
Series 70 >> Model 72B Very Large Orifice, Non-Piloted —
2-Way Normally Closed Valve
Super valves that have ratings that formerly required valves of much greater size. They have higher flow at low pressures and have quick media fill or dump for air, inert gases, and oil.
• Largest direct acting (non-piloted) valve we manufacture. • Large orifice.
• High flow at low pressures.
• Gravity feed lubrication with quick media fill or dump.
Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Media: Air, inert gases, and oil. (Series 70 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page. Burst Pressure: 500 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 12 to 1150V AC 60 HZ. and 11 to 1035V AC 50 HZ. — 2.5 to 220V DC Nominal Power: AC — 18.0 Watts DC — 16.0 Watts
Coil Construction: Non-molded Class A (Std.), Molded and Potted Class F, Class H (Opt.) Typical Response Time on Air: 6-12 milliseconds to open, 12-28 milliseconds to close. Operating Speed: Up to 350 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Aluminum anodized, corrosion resistant
Internal Components: Stainless Steel
Elastomers: FKM (Std.). Many other elastomers available.* Orifice Diameter: See table on proceeding page.
Porting: 1/2′′ NPT
Housing: Grommet and 1/2′′ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc. Valve Weight: 1.88 lbs
Repair Packs: See table on proceeding page.
Options: Alternate Elastomers and Stainless Steel Body*
* Consult representative or factory for options and specifications.
DE-ENERGIZED (OFF)
ENERGIZED (ON)
IN
OUT
OUT IN
OUT
IN
116 >>> 1-860-229-4884 >>> www.peterpaul.com
