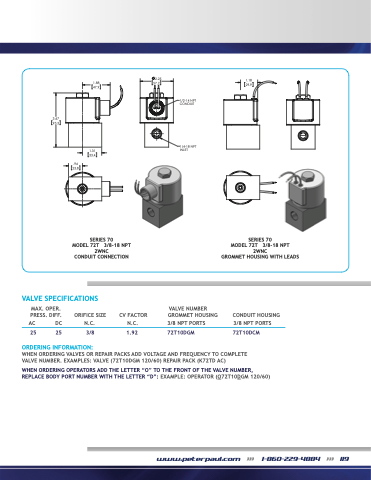

Page 121 - Peter Paul 2019 Catalog

3.67 93.3
1/2-14 NPT CONDUIT
1/4-18 NPT INLET
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
25 25
ORIFICE SIZE N.C.
3/8
CV FACTOR N.C.
1.92
VALVE NUMBER GROMMET HOUSING
3/8 NPT PORTS
72T10DGM
CONDUIT HOUSING 3/8 NPT PORTS
72T10DCM
ORDERING INFORMATION:
.94 23.8
1.88 47.9
1.31 33.4
2.25 57.2
1.18 29.9
SERIES 70
SERIES 70
MODEL 72T 3/8-18 NPT
SERIES 70
SERIES 70 MOMDEOLD7E2LT72T3/83-/188-1N8PNTPT
MODEL 72T 3/8-18 NPT 2WNC2WNC
2W2WNCNC
GROMMET HOUSING WITH LEADS
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
CONDUIT CONNECTION
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (72T10DGM 120/60) REPAIR PACK (K72TD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O72T10DGM 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 119
