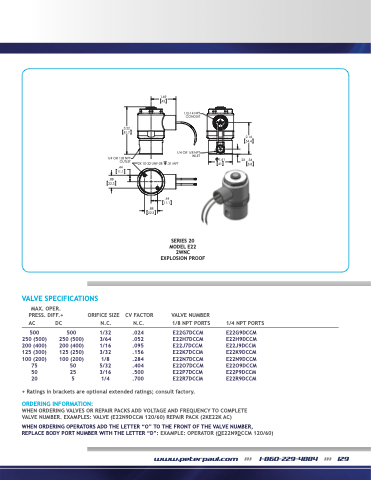

VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF.+ ORIFICE SIZE
AC DC N.C.
CV FACTOR N.C.
.024 .052 .095 .156 .284 .404 .500 .700
VALVE NUMBER 1/8 NPT PORTS
E22G7DCCM E22H7DCCM E22J7DCCM E22K7DCCM E22N7DCCM E22O7DCCM E22P7DCCM E22R7DCCM
1/4 NPT PORTS
E22G9DCCM E22H9DCCM E22J9DCCM E22K9DCCM E22N9DCCM E22O9DCCM E22P9DCCM E22R9DCCM
500 250 (500) 200 (400) 125 (300) 100 (200) 75
50
500 250 (500) 200 (400) 125 (250) 100 (200)
50
1/32 3/64 1/16 3/32 1/8 5/32 3/16 1/4
25 20 5
3.22 81.7
1/4 OR 1/8 NPT OUTLET
.44 11.1
.88 22.3
1/4 OR 1/8 NPT INLET
.31 MFT
.44 11.1
1.61 41
2.14 54.4
2X .34 8.8
+ Ratings in brackets are optional extended ratings; consult factory.
ORDERING INFORMATION:
1.69 43
2X 10-32 UNF-2B
.88 22.3
1/2-14 NPT CONDUIT
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E22N9DCCM 120/60) REPAIR PACK (2KE22K AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE22N9DCCM 120/60)
SERIESS2E0RIMESO2D0EL E22 MO2WDENLCE22
EXPLOSION PROOF
2WNC EXPLOSION PROOF
