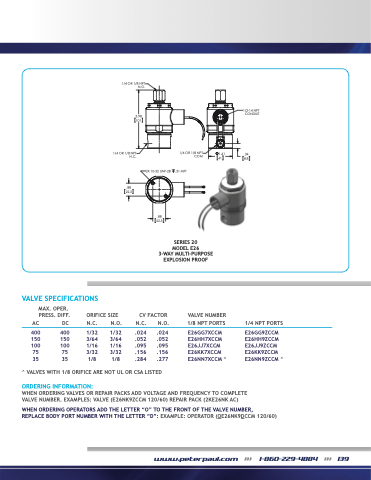

Page 141 - Peter Paul 2019 Catalog

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
400 400 150 150 100 100 75 75 35 35
ORIFICE SIZE N.C. N.O.
1/32 1/32 3/64 3/64 1/16 1/16 3/32 3/32 1/8 1/8
CV FACTOR N.C. N.O.
.024 .024 .052 .052 .095 .095 .156 .156 .284 .277
VALVE NUMBER 1/8 NPT PORTS
E26GG7XCCM E26HH7XCCM E26JJ7XCCM E26KK7XCCM E26NN7XCCM ^
1/4 NPT PORTS
E26GG9ZCCM E26HH9ZCCM E26JJ9ZCCM E26KK9ZCCM E26NN9ZCCM ^
^ VALVES WITH 1/8 ORIFICE ARE NOT UL OR CSA LISTED
ORDERING INFORMATION:
1/4 OR 1/8 NPT N.O.
3.98 101
1/4 OR 1/8 NPT N.C.
1/4 OR 1/8 NPT COM
.31 MFT
1.61 41
1/2-14 NPT CONDUIT
.34 8.8
.88 22.3
2X 10-32 UNF-2B
.88 22.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E26NK9ZCCM 120/60) REPAIR PACK (2KE26NK AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE26NK9DCCM 120/60)
SERIES 20
SERIES 20 MODEL E26
MODEL E26
3-WAY MULTI-PURPOSE 3-WEXAPYLOMUSILOTNI-PURORPOOFSE EXPLOSION PROOF
