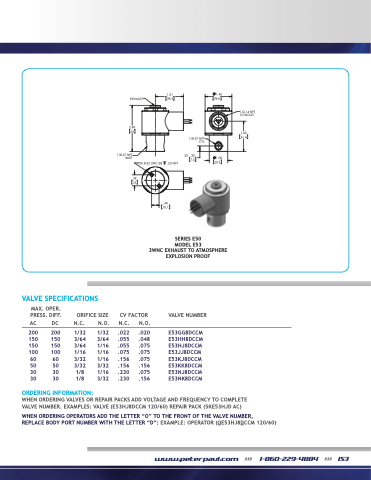

Page 155 - Peter Paul 2019 Catalog

1.51 EXHAUST 38.4
1.44 36.6
2.48
1/8-27 NPT INLET
.59 15
1/8-27 NPT CYL
1/2-14 NPT CONDUIT
1.63 41.4
63
2X 8-32 UNC-2B
2X .23 MFT
.30
7.5 1.00
25.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E53HJ8DCCM 120/60) REPAIR PACK (5KE53HJD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE53HJ8DCCM 120/60)
.40 10.1
SERIES 50
SERIES E50
MODEL E53
MODEL E53
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF
EXPLOSION PROOF
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
200 200
150 150
150 150
100 100
60 60
50 50
30 30
ORIFICE SIZE N.C. N.O.
CV FACTOR N.C. N.O.
.022 .020 .055 .048 .055 .075 .075 .075 .156 .075 .156 .156 .230 .075 .230 .156
VALVE NUMBER
E53GG8DCCM E53HH8DCCM E53HJ8DCCM E53JJ8DCCM E53KJ8DCCM E53KK8DCCM E53NJ8DCCM E53NK8DCCM
30 30 1/8
ORDERING INFORMATION:
1/32 3/64 3/64 1/16 3/32 3/32 1/8
1/32 3/64 1/16 1/16 1/16 3/32 1/16 3/32
