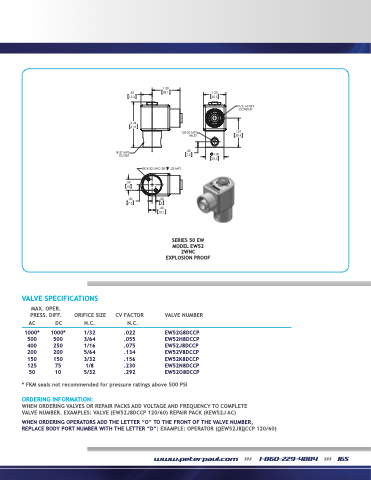

VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
AC DC N.C.
CV FACTOR N.C.
.022 .055 .075 .134 .156 .230 .292
VALVE NUMBER
EW52G8DCCP EW52H8DCCP EW52J8DCCP EW52V8DCCP EW52K8DCCP EW52N8DCCP EW52O8DCCP
1000* 1000* 500 500 400 250 200 200 150 150 125 75 50 10
1/32 3/64 1/16 5/64 3/32 1/8 5/32
* FKM seals not recommended for pressure ratings above 500 PSI
ORDERING INFORMATION:
2.44 61.9
1/8-27 NPT OUTLET
.59 15
.30 7.5
1/8-27 NPT INLET
.30 7.5
1/2-14 NPT CONDUIT
1.57 39.9
.60 15.2
1.50 38.1
1.20 30.5
1.00 25.3
2X 8-32 UNC-2B
.20 5 .40 10.1
.23 MFT
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EW52J8DCCP 120/60) REPAIR PACK (KEW52J AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEW52J8DCCP 120/60)
SERIES 50
SERIES 50 EW
MODEL EW52
MODEL EW52
2WNC
2WNC
EXPLOSION PROOF
EXPLOSION PROOF
