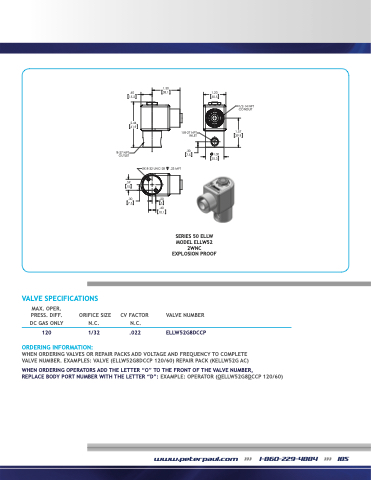

VALVE SPECIFICATIONS
SERIES 50 MODELEWLL5W252
2W2NWCNC EXEPXLOPLSOIOSINONPRPOROOFF
VALVE NUMBER
ELLW52G8DCCP
MAX. OPER. PRESS. DIFF.
DC GAS ONLY
120
ORIFICE SIZE N.C.
1/32
CV FACTOR N.C.
.022
ORDERING INFORMATION:
2.44 61.9
1/8-27 NPT OUTLET
.59 15
.30 7.5
1/8-27 NPT INLET
.30 7.5
1/2-14 NPT CONDUIT
1.57 39.9
.60 15.2
1.50 38.1
1.20 30.5
1.00 25.3
2X 8-32 UNC-2B
.23 MFT
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (ELLW52G8DCCP 120/60) REPAIR PACK (KELLW52G AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OELLW52G8DCCP 120/60)
.20 5 .40 10.1
SERIES 50 ELLW
