1.51 EXHAUST 38.4
1.44 36.6
2.48
1/8-27 NPT INLET
.59 15
1/8-27 NPT CYL
1/2-14 NPT CONDUIT
1.63 41.4
63
2X 8-32 UNC-2B
2X .23 MFT
.30
7.5 1.00
25.3
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EL53HH8DCCM 120/60) REPAIR PACK (5KEL53HHD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEL53HH8DCCM 120/60)
.40 10.1

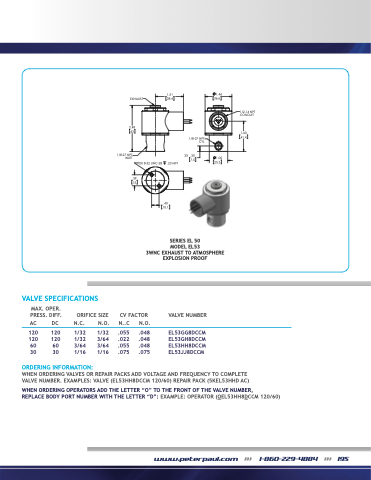

SERIES 50
SERIES EL 50
MODEL EL53
MODEL EL53
3WNC EXHAUST TO ATMOSPHERE 3WNCEXHPALOUSTIOTNOPARTOMOSFPHERE EXPLOSION PROOF
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
ORIFICE SIZE N.C. N.O.
1/32 1/32 1/32 3/64 3/64 3/64 1/16 1/16
CV FACTOR N..C N.O.
.055 .048 .022 .048 .055 .048 .075 .075
VALVE NUMBER
EL53GG8DCCM EL53GH8DCCM EL53HH8DCCM EL53JJ8DCCM
AC
120 120 60 30
DC
120 120 60 30
