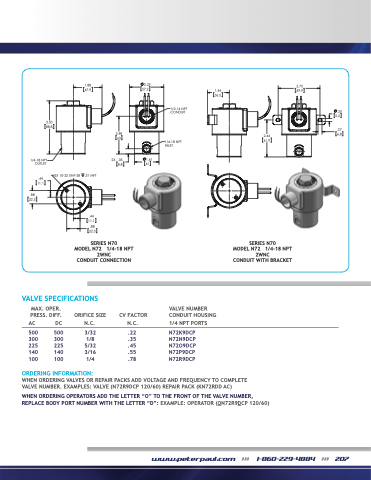

Page 209 - Peter Paul 2019 Catalog

3.50 88.8
1/4-18 NPT OUTLET
2.48 63
.35 1.61 8.8 41
1/2-14 NPT CONDUIT
1/4-18 NPT INLET
.20 5.2
.27
.44 11.1
.88 22.3
2X 10-32 UNF-2B
.31 MFT
.44 11.1 .88
22.3
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
500 500
300 300
225 225
140 140
100 100
ORIFICE SIZE N.C.
3/32 1/8 5/32 3/16 1/4
CV FACTOR N.C.
.22 .35 .45 .55 .78
VALVE NUMBER CONDUIT HOUSING
1/4 NPT PORTS
N72K9DCP N72N9DCP N72O9DCP N72P9DCP N72R9DCP
ORDERING INFORMATION:
1.88 2.25 47.9 57.2
1.44 36.5
2.75 69.9
SERIES N70
SERIES N70
SERIES 70 MODEMLOND7E2L N17/42-181/N4P-1T8 NPT
SERIES 70 MODMELOND7E2L N17/24-118/4N-P1T8 NPT
2X
2WN2CWNC CONDUIT CONNECTION
2WN2CWNC CONDUIT WITH BRACKET
CONDUIT CONNECTION
CONDUIT WITH BRACKET
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (N72R9DCP 120/60) REPAIR PACK (KN72RDD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (ON72R9DCP 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 207
2.44 6.8 61.9
