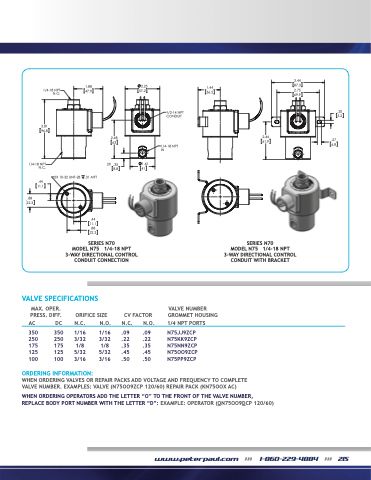

Page 217 - Peter Paul 2019 Catalog

3.81 96.8
1/4-18 NPT N.C.
.44 11.1
.88 22.3
2.48 63
2X .35 1.61 8.8 41
.44 11.1 .88 22.3
2.44 61.9
.27 6.8
1/4-18 NPT N.O.
1.88 2.25 47.9 57.2
1.44 36.5
3.44 87.3 2.75 69.9
2X 10-32 UNF-2B
.31 MFT
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
AC DC N.C. N.O.
350 350 1/16 1/16 250 250 3/32 3/32 175 175 1/8 1/8 125 125 5/32 5/32 100 100 3/16 3/16
ORDERING INFORMATION:
CV FACTOR N.C. N.O.
.09 .09 .22 .22 .35 .35 .45 .45 .50 .50
VALVE NUMBER GROMMET HOUSING
1/4 NPT PORTS
N75JJ9ZCP N75KK9ZCP N75NN9ZCP N75OO9ZCP N75PP9ZCP
SERIES N70
SERIES N70
SERIES 70
SERIES 70
MODEL N75 1/4-18 NPT
MODEL N75 1/4-18 NPT
MODEL N75 1/4-18 NPT
MODEL N75 1/4-18 NPT
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
CONDUIT CONNECTION
CONDUIT WITH BRACKET
CONDUIT CONNECTION
CONDUIT WITH BRACKET
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (N75OO9ZCP 120/60) REPAIR PACK (KN75OOX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (ON75OO9DCP 120/60)
1/2-14 NPT CONDUIT
1/4-18 NPT IN
.20 5.2
