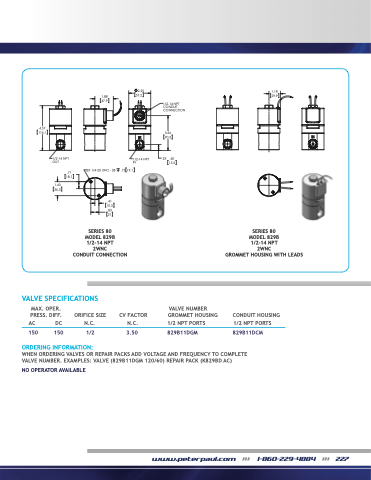

Page 229 - Peter Paul 2019 Catalog

4.57 116.1
1/2-14 NPT CONDUIT CONNECTION
3.56 90.3
2X .60 15.2
1/2-14 NPT OUT
.71 18.1
1.43 36.3
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
150 150
ORIFICE SIZE N.C.
1/2
CV FACTOR N.C.
3.50
VALVE NUMBER GROMMET HOUSING
1/2 NPT PORTS
829B11DGM
ORDERING INFORMATION:
1.88 47.9
2X 1/4-20 UNC - 2B
.41 10.5 .83 21
2.25 57.2
1/2-14 NPT IN
.75 19.1
1.18 29.9
SERIES 80
SERIES 80
SERIES 80
SERIES 80 MOMDEOLD8E2L98B29B 1/2-14 NPT
MODEL 829B
MODEL 829B 1/2-14 NPT 1/22-1W4NNCPT
1/2-14 NPT2WNC
GROMMET HOUSING WITH LEADS CONDUI2TWCNOCNNECTION 2WNC
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
CONDUIT HOUSING 1/2 NPT PORTS
829B11DCM
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (829B11DGM 120/60) REPAIR PACK (K829BD AC)
NO OPERATOR AVAILABLE
