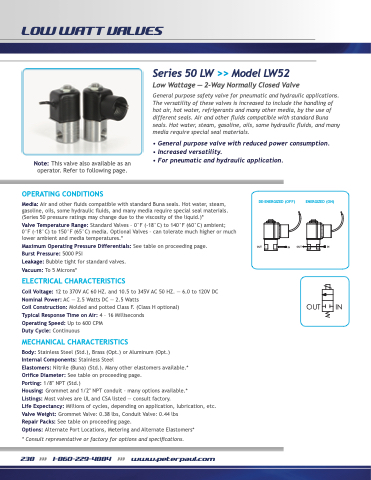

Page 240 - Peter Paul 2019 Catalog

LOW WATT VALVES
Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Media: Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page. Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 12 to 370V AC 60 HZ. and 10.5 to 345V AC 50 HZ. — 6.0 to 120V DC Nominal Power: AC — 2.5 Watts DC — 2.5 Watts
Coil Construction: Molded and potted Class F. (Class H optional)
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.) Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.* Orifice Diameter: See table on proceeding page.
Porting: 1/8′′ NPT (Std.)
Housing: Grommet and 1/2′′ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed — consult factory.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc. Valve Weight: Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
Repair Packs: See table on proceeding page.
Options: Alternate Port Locations, Metering and Alternate Elastomers*
* Consult representative or factory for options and specifications.
DE-ENERGIZED (OFF)
OUT IN OUT
ENERGIZED (ON)
IN
Series 50 LW >> Model LW52
Low Wattage — 2-Way Normally Closed Valve
General purpose safety valve for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials.
• General purpose valve with reduced power consumption. • Increased versatility.
• For pneumatic and hydraulic application.
