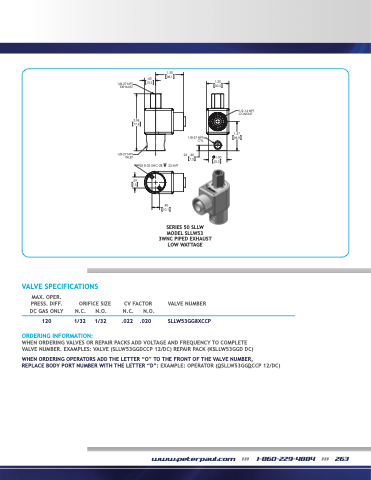

VALVE SPECIFICATIONS
MODEL EW53 3WNLOCWPIWPEADTTEAXGHEAUST EXPLOSION PROOF
VALVE NUMBER
SLLW53GG8XCCP
MAX. OPER. PRESS. DIFF.
DC GAS ONLY
120
ORIFICE SIZE N.C. N.O.
1/32 1/32
CV FACTOR N.C. N.O.
.022 .020
ORDERING INFORMATION:
1/8-27 NPT EXHAUST
1.20 30.5
1.00 25.3
1/8-27 NPT INLET
.60 15.2
3.06 77.8
.59 15
1.50 38.1
2X 8-32 UNC-2B
.23 MFT
.40 10.1
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (SLLW53GGDCCP 12/DC) REPAIR PACK (KSLLW53GGD DC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OSLLW53GGDCCP 12/DC)
1/8-27 NPT CYL
2X .30 7.5
1/2-14 NPT CONDUIT
1.57 39.9
SERIES 50 SLLW MODEL SLLW53
SERIES 50
3WNC PIPED EXHAUST
