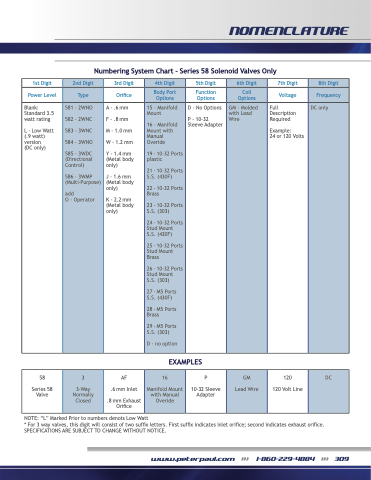

NOMENCLATURE
Numbering System Chart - Series 58 Solenoid Valves Only
1st Digit
2nd Digit
3rd Digit
4th Digit
5th Digit
6th Digit
7th Digit
8th Digit
Power Level
Type
Orifice
Body Port Options
Function Options
Coil Options
Voltage
Frequency
Blank: Standard 3.5 watt rating
L - Low Watt (.9 watt) version
(DC only)
581 - 2WNO 582 - 2WNC 583 - 3WNC 584 - 3WNO
585 - 3WDC (Directional Control)
586 - 3WMP (Multi-Purpose)
add
O - Operator
A - .6 mm F - .8 mm M - 1.0mm W - 1.2mm
Y - 1.4mm (Metal body only)
J - 1.6mm (Metal body only)
K - 2.2mm (Metal body only)
15 - Manifold Mount
16 - Manifold Mount with Manual Overide
19 - 10-32 Ports plastic
21 - 10-32 Ports S.S. (430F)
22 - 10-32 Ports Brass
23 - 10-32 Ports S.S. (303)
24 - 10-32 Ports Stud Mount S.S. (430F)
25 - 10-32 Ports Stud Mount Brass
26 - 10-32 Ports Stud Mount S.S. (303)
27 - M5 Ports S.S. (430F)
28 - M5 Ports Brass
29 - M5 Ports S.S. (303)
D - no option
D - No Options
P - 10-32 Sleeve Adapter
GM - Molded with Lead Wire
Full Description Required
Example:
24 or 120 Volts
DC only
EXAMPLES
NOTE: “L” Marked Prior to numbers denots Low Watt
* For 3 way valves, this digit will consist of two suffix letters. First suffix indicates inlet orifice; second indicates exhaust orifice. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
58
Series 58 Valve
3
3-Way Normally Closed
AF
.6 mm Inlet
.8 mm Exhaust Orifice
16
Manifold Mount with Manual Overide
P
10-32 Sleeve Adapter
GM Lead Wire
120
120 Volt Line
DC
www.peterpaul.com >>> 1-860-229-4884 >>> 309
