1/8-27 NPT IN
3.27 83
1/8-27 NPT EXHAUST
.30 7.5
.59 15
1.51 38.4
1.44 36.6
1/8-27 NPT CYL
.23 5.9 MFT
1/2 NPT CONDUIT
1.63 41.4
1.00 25.3
2X 8-32 UNC - 2B
.20 5 .40 10.1

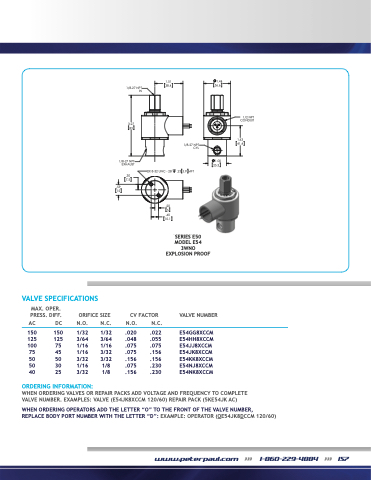

SSEERRIEIESS5E050 MMOODDEELLEE5544
3WNO
3WNO
EXPLOSION PROOF
EXPLOSION PROOF
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
150 150 125 125 100 75 75 45 50 50 50 30 40 25
ORIFICE SIZE
N.O. N.C. N.O. N.C.
VALVE NUMBER
E54GG8XCCM E54HH8XCCM E54JJ8XCCM E54JK8XCCM E54KK8XCCM E54NJ8XCCM E54NK8XCCM
ORDERING INFORMATION:
CV FACTOR
1/32 1/32 3/64 3/64 1/16 1/16 1/16 3/32 3/32 3/32 1/16 1/8 3/32 1/8
.020 .022 .048 .055 .075 .075 .075 .156 .156 .156 .075 .230 .156 .230
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E54JK8XCCM 120/60) REPAIR PACK (5KE54JK AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE54JK8DCCM 120/60)
