1.51 1/8-27 NPT 38.4
1.44 36.6
1.00 25.3
N.O.
3.27 83
1/8-27 NPT N.C.
2X 8-32 UNC-2B .23 MFT .30
1/8-27 NPT INLET
2X .30 7.5
1/2-14 NPT CONDUIT
1.63 41.4
7.5
.59 15
.20 5 .40 10.1

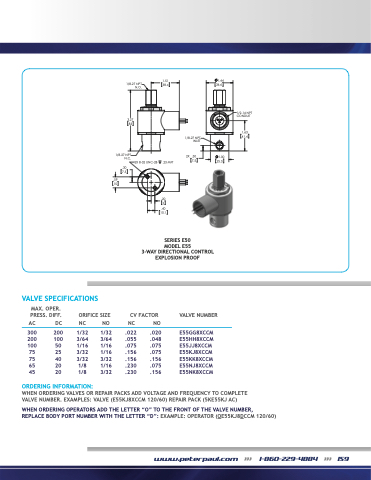

SERIES E50
SERIES 50
MODEL E55
MODEL E55 3-3W-WAAYYDIIREECTIOIONAL CONTROL EEXXPPLOLOSSIOIONPROOF
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
VALVE NUMBER
E55GG8XCCM E55HH8XCCM E55JJ8XCCM E55KJ8XCCM E55KK8XCCM E55NJ8XCCM E55NK8XCCM
CV FACTOR AC DC NC NO NC NO
300
200
100
75
75
65
45
200 1/32 1/32 .022 .020 100 3/64 3/64 .055 .048 50 1/16 1/16 .075 .075 25 3/32 1/16 .156 .075 40 3/32 3/32 .156 .156 20 1/8 1/16 .230 .075 20 1/8 3/32 .230 .156
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E55KJ8XCCM 120/60) REPAIR PACK (5KE55KJ AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE55KJ8DCCM 120/60)
