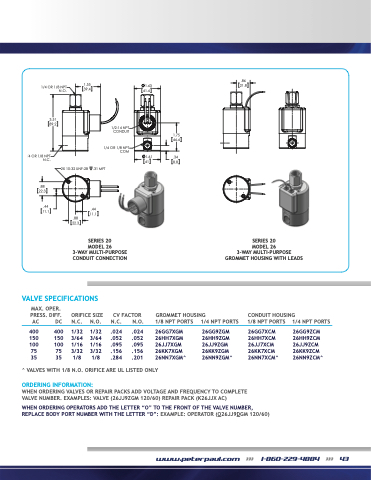

Page 45 - Peter Paul 2019 Catalog

3.51 89.2
1/4 OR 1/8 NPT N.C.
.88 22.3
.44 11.1
1/2-14 NPT CONDUIT
1/4 OR 1/8 NPT COM
.31 MFT
.44 11.1
.88 22.3
1.75 44.4
.34 8.8
1/4 OR 1/8 NPT N.O.
1.55 39.4
1.63 41.4
1.61 41
.86 21.8
400 400 1/32 150 150 3/64 100 100 1/16
75 75 3/32 35 35 1/8
1/32 .024 3/64 .052 1/16 .095 3/32 .156
1/8 .284
.024 .052 .095 .156 .201
1/8 NPT PORTS
26GG7XGM 26HH7XGM 26JJ7XGM 26KK7XGM 26NN7XGM^
1/4 NPT PORTS
26GG9ZGM 26HH9ZGM 26JJ9ZGM 26KK9ZGM 26NN9ZGM^
1/8 NPT PORTS
26GG7XCM 26HH7XCM 26JJ7XCM 26KK7XCM 26NN7XCM^
1/4 NPT PORTS
26GG9ZCM 26HH9ZCM 26JJ9ZCM 26KK9ZCM 26NN9ZCM^
2X 10-32 UNF-2B
SERIES 20
SERIES 20
SERIES 20 MODEL 26
SERIES 20 MODEL 26
MODEL 26
MODEL 26
3-WAY MULTI-PURPOSE
3-WAY MULTI-PURPOSE
3-WAY MULTI-PURPOSE
3-WAY MULTI-PURPOSE
CONDUIT COIL CONNECTION
GROMMET HOUSING WITH LEADS
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE CV FACTOR
AC DC N.C. N.O. N.C. N.O.
GROMMET HOUSING
CONDUIT HOUSING
^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (26JJ9ZGM 120/60) REPAIR PACK (K26JJX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O26JJ9DGM 120/60)
