.34 8.7
.69 17.4
2X 10-32 UNF-2B
.31 MFT
1/8-27 NPT OUTLET
3.30 83.7
1/2-14 NPT CONDUIT
1/8-27 NPT INLET
.28 7.2
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
300 300 175 175 125 125 75 75
ORIFICE SIZE N.O.
1/32 3/64 1/16 3/32
CV FACTOR N.O.
.024 .052 .095 .160
GROMMET HOUSING 1/8 NPT PORTS
31G5XGM 31H5XGM 31J5XGM 31K5XGM
CONDUIT HOUSING 1/8 NPT PORTS
31G5XCM 31H5XCM 31J5XCM 31K5XCM
ORDERING INFORMATION:
.30 7.5 .59 15
1.56 39.7
1.63 41.4
1.17 29.7
.86 21.8

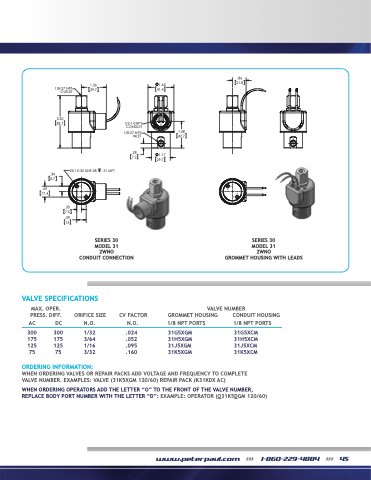

SERIES 30
SERIES 30
SERIES 30
SERIES 30
MODEL 31
MODEL 31
MODEL 31
MODEL 31
2WNO
2WNO
2WNO CONCDOUNITDCUOITNCNOECNTNIOENCTION
2WNO
GGROMMET HOUSIINGWWITITHLLEADDSS
VALVE NUMBER
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (31K5XGM 120/60) REPAIR PACK (K31KDX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O31K5DGM 120/60)
1.68 42.7
