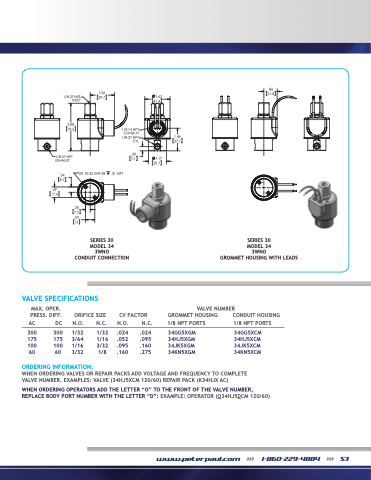

Page 55 - Peter Paul 2019 Catalog

1/8-27 NPT INLET
3.08 78.2
1/8-27 NPT EXHAUST
.34 8.7
.69 17.4
1.56 39.7
1.63 41.4
.86 21.8
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
300 300 175 175 100 100 60 60
ORIFICE SIZE N.O. N.C.
1/32 1/32 3/64 1/16 1/16 3/32 3/32 1/8
CV FACTOR N.O. N.C.
.024 .024 .052 .095 .095 .160 .160 .275
VALVE NUMBER
GROMMET HOUSING CONDUIT HOUSING
1/8 NPT PORTS 1/8 NPT PORTS
34GG5XGM 34GG5XCM 34HJ5XGM 34HJ5XCM 34JK5XGM 34JK5XCM 34KN5XGM 34KN5XCM
ORDERING INFORMATION:
.30 7.5 .59 15
2X 10-32 UNF-2B
.31 MFT
SERIES 30 MODEL 34
SERIES 30 MODEL 34
SERIES 30
SERIES 30
MODEL 34
MODEL 34
3WNO
3WNO
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
3WNO CONDUIT CONNECTION
3WNO
GROMMET HOUSING WITH LEADS
1/2-14 NPT CONDUIT
1/8-27 NPT CYL
1.46 37.1
.28
7.1 1.17
29.7
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (34HJ5XCM 120/60) REPAIR PACK (K34HJX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O34HJ5DCM 120/60)
