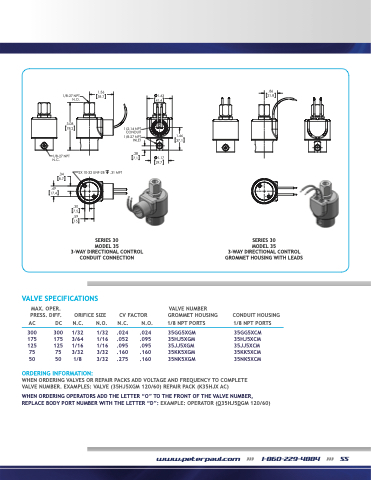

Page 57 - Peter Paul 2019 Catalog

1/8-27 NPT N.O.
3.08 78.2
1/8-27 NPT N.C.
.34 8.7
.69 17.4
1.56 39.7
1.63 41.4
1.17 29.7
.86 21.8
MODEL 35
VALVE SPECIFICATIONS
MODEL 35
MAX. OPER. PRESS. DIFF.
AC DC
ORIFICE SIZE CV FACTOR
VALVE NUMBER GROMMET HOUSING
1/8 NPT PORTS
35GG5XGM 35HJ5XGM 35JJ5XGM 35KK5XGM 35NK5XGM
CONDUIT HOUSING 1/8 NPT PORTS
35GG5XCM 35HJ5XCM 35JJ5XCM 35KK5XCM 35NK5XCM
300 300 1/32 175 175 3/64 125 125 1/16
75 75 3/32 50 50 1/8
ORDERING INFORMATION:
.30 7.5 .59 15
2X 10-32 UNF-2B
.31 MFT
SERIES 30 MOSDEREILE3S530
SERIES 30 SEMRIEOSD3E0L 35
3W DIRECTIONAL CONTROL
3W DIRECTIONAL CONTROL
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
3-WAY DIRECTIONAL CONTROL CONDUIT CONNECTION
3-WAY DIRECTIONAL CONTROL GROMMET HOUSING WITH LEADS
N.C.
N.O. N.C.
1/32 .024 1/16 .052 1/16 .095 3/32 .160 3/32 .275
N.O.
.024 .095 .095 .160 .160
1/2-14 NPT CONDUIT
1/8-27 NPT INLET
.28 7.1
1.46 37.1
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (35HJ5XGM 120/60) REPAIR PACK (K35HJX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O35HJ5DGM 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 55
