1/8-27 NPT N.O.
3.08 78.2
1/8-27 NPT N.C.
.34 8.7
.69 17.4
1.56 39.7
1.63 41.4
1.17 29.7
.86 21.8
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
300 300 150 150 75 75 50 30
ORIFICE SIZE N.C. N.O.
1/32 1/32 3/64 3/64 1/16 1/16 3/32 3/32
CV FACTOR N.C. N.O.
.024 .024 .052 .052 .095 .095 .160 .160
VALVE NUMBER GROMMET HOUSING
1/8 NPT PORTS
36GG5XGM 36HH5XGM 36JJ5XGM 36KK5XGM
CONDUIT HOUSING 1/8 NPT PORTS
36GG5XCM 36HH5XCM 36JJ5XCM 36KK5XCM
ORDERING INFORMATION:
2X 10-32 UNF-2B
.31 MFT
.30 7.5 .59 15

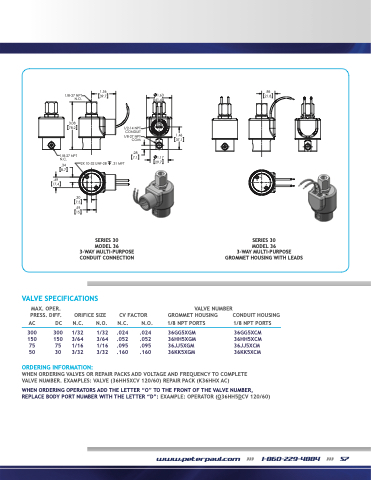

MODEL 36 3-WAY MULTI-PURPOSE CONDUIT CONNECTION
SERIES 30
SERIES 30
MODEL 36
MODEL 36
3W MULTI-PURPOSE
3W MULTI-PURPOSE
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
SERIES 30
SERIES 30
1/2-14 NPT CONDUIT 1/8-27 NPT
1.46 37.1
COM
.28 7.1
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (36HH5XCV 120/60) REPAIR PACK (K36HHX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O36HH5DCV 120/60)
MODEL 36
3-WAY MULTI-PURPOSE GROMMET HOUSING WITH LEADS
www.peterpaul.com >>> 1-860-229-4884 >>> 57
