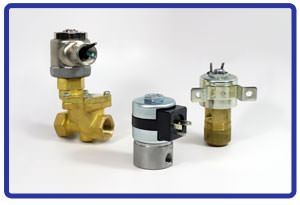

Other Specialty Valves
Peter Paul specializes in unique, niche applications and designing valves that compliment them. Magnetic Latching valves and large orifice are just a few of the specialty valves that Peter Paul manufactures. Check out this specialty valves section or contact us directly to discuss your application.
|
Peter Paul single orifice valves in which the orifice is closed in the energized position and no flow can exist between the inlet and outlet ports. 2-Way Normally Open Specialty Valves |
||||
| Model | Size | Nominal Power | Other Features | |
| Model 21 | Medium | AC 10.0 W | DC 10.0 W | Magnetic Latching |
| Model 818 | Jumbo | AC 7.7 W | DC 9.5 W | Large Orifice, Piloted Piston |
|
Peter Paul single orifice valves in which the orifice is closed in the de-energized position and no flow can exist between the inlet and outlet ports. 2-Way Normally Closed Other Specialty Valves |
||||
| Model | Size | Nominal Power | Other Features | |
| Model 22 | Medium | N/A | DC 10.0 W | Magnetic Latching |
| Model F32 | Small | AC 9.0 W | DC 9.0 W | Integral Filter, Mounting Bracket |
| Model MIV | Miniature | AC 4.25 W | DC 7.25 W | Media Isolation, Plastic Body |
| Model 72T | Large | AC 18.0 W | DC 16.0 W | Low Pressure. High Flow |
| Model 72B | Large | AC 18.0 W | DC 16.0 W | Low Pressure, High Flow |
| Model 42 | Medium | AC 3.3 W | DC 5.0 W | Molded Plastic Body and Coil |
| Model 827 | Jumbo | AC 7.7 W | DC 7.7 | Large Orifice, Direct Lift |
| Model 828 | Jumbo | AC 7.7 W | DC 9.5 W | Large Orifice, Piloted Piston |
| Model 22T | Medium | AC 7.7 W | N/A | Low Pressure, High Flow |
|
Peter Paul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports. 3-Way Normally Closed Other Specialty Valves (exhaust to atmosphere) |
||||
| Model | Size | Nominal Power | Other Features | |
| Model 23 | Medium | N/A | DC 10.0 W | Magnetic Latching |
| Model 43 | Medium | AC 3.3 W | DC 5.0 W | Molded Plastic Body and Coil |
|
Peter Paul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports. 3-Way Normally Closed Other Specialty Valves (piped exhaust) |
||||
| Model | Size | Nominal Power | Other Features | |
| Model 23 | Medium | N/A | DC 10.0 W | Magnetic Latching |
| Model 43 | Medium | AC 3.3 W | DC 5.0 W | Molded Plastic Body and Coil |
|
Peter Paul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between exhaust and cylinder ports but flow does exist between inlet and cylinder ports. 3-Way Normally Open Other Specialty Valves |
||||
| Model | Size | Nominal Power | Other Features | |
| Model 24 | Medium | N/A | DC 10.0 W | Magnetic Latching |
