Series 20 Model 22T

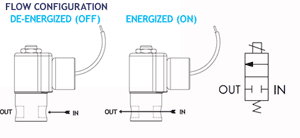

2-WAY NORMALLY CLOSED

Super valves that have ratings that formerly required valves of much greater size. They have higher flow at low pressures and have quick media fill or dump. For use with air and other fluids, compatible with Buna seals. Hot water, steam, gasoline and many oils require special seal materials.
• Large orifice in a smaller package.
• High flow at low pressures.
• Gravity feed lubrication with quick media fill or dump.

Series22T.pdf

Tabs

产品规格

MAX. OPER. PRESS. DIFF.	ORIFICE SIZE	CV FACTOR	VALVE NUMBER GROMMET HOUSING	CONDUIT HOUSING
AC

10	3/8	2.0	22T1DGM	22T1DCM

运行条件:

说明:

Air and other fluids, compatible with Buna seals. Hot water, steam, gasoline and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*

阀门温度范围:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

最大工作压差:

See table above.

爆破压力:

5000 PSI

泄漏:

Bubble tight for standard valves.

真空:

To 15" Mercury*

电气特性:

线圈电压:

6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ.

额定功率:

AC — 7.7 Watts

线圈结构:

Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)

典型的空中响应时间:

4-16 Milliseconds

运行速度:

Up to 600 CPM

工作周期:

Continuous

机械特性:

主体:

Stainless Steel

内部组件:

Stainless Steel

附件:

Nitrile (Buna) (Std.). Many other elastomers available.*

孔口直径:

See table above.

端口:

3/8" NPT

预期寿命:

Millions of cycles, depending on application, lubrication, etc.

阀门重量:

1.38 lbs

修理包:

See table above.

选项:

Alternate Elastomers, Spade Terminal Coil, European Style DIN Coil and Explosion Proof*

图纸

图纸:

Series 20 High Flow Low Pressure Valves Conduit

MODEL 22T 3/8-18 NPT
2WNC CONDUIT CONNECTION

Series 20 High Flow Low Pressure Valves Conduit/Bracket Connection

MODEL 22T 3/8-18 NPT
2WNC
CONDUIT/BRACKET CONNECTION

Series 20 High Flow Low Pressure Valves DIN

MODEL 22T 3/8-18 NPT
2WNC DIN STYLE COIL

Series 20 High Flow Low Pressure Valves Grommet

MODEL 22T 3/8-18 NPT
2WNC GROMMET WITH LEADS

Series 20 High Flow Low Pressure Valves Grommet/Bracket Connection

MODEL 22T 3/8-18 NPT
2WNC
GROMMET/BRACKET WITH LEADS

Series 20 High Flow Low Pressure Valves Yoke Leads

MODEL 22T 3/8-18 NPT
2WNC YOKE WITH LEADS

Series 20 High Flow Low Pressure Valves Yoke Spades

MODEL 22T 3/8-18 NPT
2WNC YOKE WITH SPADES

流程图

流程图:

Flow chart Series 20-30

Series 20 Series 30 Flow Chart

命名规则表

命名规则:

电磁阀型号编码规则（除58系列外）

* Consult representative or factory for options and specifications
