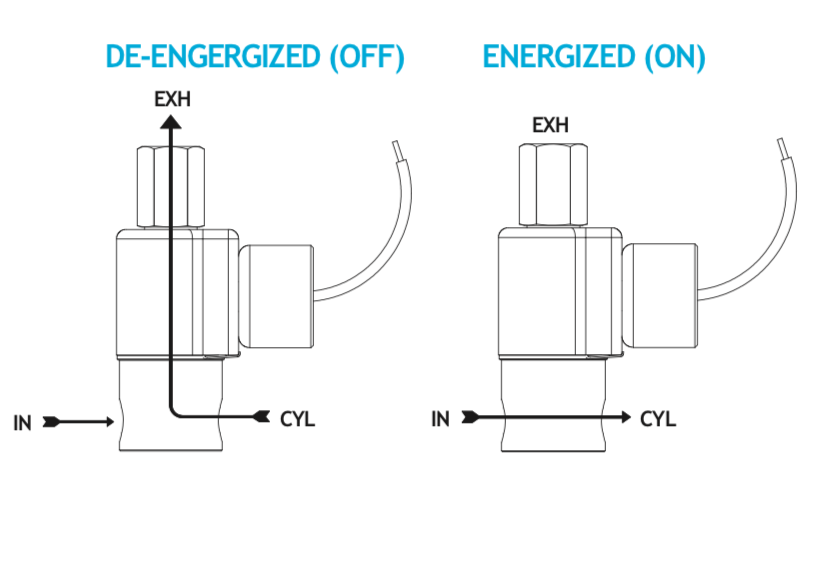

SERIES 70 MODEL N73 PIPED EXHAUST

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE		CV FACTOR		CONDUIT HOUSING

AC	DC	N.C.	N.O.	N.C.	N.O.	1/4 NPT PORTS

350	350	1/16	1/16	.09	.09	N73JJ9ZCP
250	250	3/32	3/32	.22	.22	N73KK9ZCP
175	175	1/8	1/8	.35	.35	N73NN9ZCP
125	125	5/32	5/32	.45	.45	N73OO9ZCP
100	100	3/16	3/16	.50	.50	N73PP9ZCP
50	50	1/4	3/16	.78	.50	N73RP9ZCP

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (N73OO9ZGP-120/60) REPAIR PACK (KN73OOX-AC)

运行条件:

说明:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 70 pressure ratings may change due to the viscosity of the liquid.)*

阀门温度范围:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

最大工作压差:

See table above.

爆破压力:

4000 PSI

泄漏:

Bubble tight for standard valves.

真空:

To 5 Microns*

电气特性:

线圈电压:

12 to 1150V AC 60 HZ. and 11 to 1035V AC 50 HZ. — 2.5 to 220V DC

额定功率:

AC — 18.0 Watts DC — 16.0 Watts

线圈结构:

Potted Class F. (Class H optional)

典型的空中响应时间:

4 - 16 Milliseconds

运行速度:

Up to 600 CPM

工作周期:

Continuous

机械特性:

主体:

Stainless Steel (Std.) or Brass (Opt.)

内部组件:

Stainless Steel

附件:

Nitrile (Buna) (Std.). Many other elastomers available.*

孔口直径:

See table above.

端口:

Standard 1/4" NPT (other ports available).*

外罩:

1/2" NPT conduit *

列表:

Listed and Certified for Non-Incendive Hazardous Locations — Class I, Div 2, Groups A,B,C and D - Class II, Div 2, Groups E,F and G - T3C Temperature rating.

预期寿命:

Millions of cycles, depending on application, lubrication, etc.

阀门重量:

Conduit Valve: 2.06 lb

修理包:

See table below.

选项:

Alternate Port Locations, Metering and Alternate Elastomers * Consult representative or factory for options and specifications.
