20系列 >> 型号24

20系列 >> 型号24

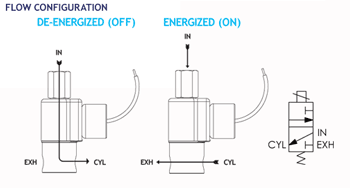

二位三通常开型

一系列具有选项和卓越成熟性能的阀门。应用中的标杆。介质为空气,水或其他与标配的丁腈橡胶相兼容的流体。热水,蒸汽,汽油和其他油需要特殊密封材料。
• 最初为流体动力工业创造的一流阀门。
• 重型且由不锈钢制成。
• 真正的主力,具有成熟的性能。
• 具有所有阀门可用的最多选项。
• 节流孔径范围从1/32"到1/8"。

Tabs

Operator Drawings
Operator Drawings:

Series 20 OPERATORS CONDUIT


MODEL 24 1/8-27 NPT
3WNO CONDUIT CONNECTION

MODEL 24 1/4-18 NPT
3WNO CONDUIT CONNECTION


Series 20 OPERATORS DIN


MODEL 24 1/8-27 NPT
3WNO DIN STYLE COIL

MODEL 24 1/4-18 NPT
3WNO DIN STYLE COIL


Series 20 OPERATORS EXPLOSION PROOF


MODEL 24 1/8-27 NPT
3WNO CONDUIT CONNECTION

MODEL 24 1/4-18 NPT
3WNO CONDUIT CONNECTION


Series 20 OPERATORS GROMMET


MODEL 24 1/8-27 NPT
3WNO GROMMET WITH LEADS

MODEL 24 1/8-27 NPT
3WNO GROMMET WITH LEADS


Series 20 OPERATORS YOKE LEADS


MODEL 24 1/8-27 NPT
3WNO MOLDED COIL WITH YOKE

MODEL 24 1/4-18 NPT
3WNO MOLDED COIL WITH YOKE


Series 20 OPERATORS YOKE SPADE


MODEL 24 1/8-27 NPT
3WNO SPADE COIL WITH YOKE

MODEL 24 1/4-18 NPT
3WNO SPADE COIL WITH YOKE


* Consult representative or factory for options and specifications
