二位三通常开型

二位三通常开型

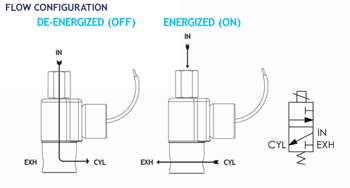

我们起初的微型阀-没有舍弃性能的前提下用于节省空间的设计。通常的应用包括医疗，分析仪器；空气，水跟其它标配的丁腈橡胶密封垫相兼容的流体介质。热水、蒸汽、汽油或其它油需要特殊的密材料。
• 替换选项后，在恶劣环境或低功耗场合中更耐用。
• 优质的工程设计

Tabs

产品规格

最大工作压差		节流孔径		CV 系数				阀门型号扣环外壳	导管外壳

AC	DC	常开	常关	常开	常关			1/8 NPT 端口	1/8 NPT 端口

150	150	1/32	1/32	.020	.022			54GG8XGM	54GG8XCM
125	125	3/64	3/64	.048	.055			54HH8XGM	54HH8XCM
100	75	1/16	1/16	.075	.075			54JJ8XGM	54JJ8XCM
75	45	1/16	3/32	.075	.156			54KJ8XGM	54KJ8XCM
50	50	3/32	3/32	.150	.156			54KK8XGM	54KK8XCM
40	25	3/32	1/8	.150	.230			54NK8XGM	54NK8XCM

运行条件:

说明:

空气、水和其他流体使用标准密封件-（丁腈橡胶密封）；热水、蒸汽、汽油等许多特殊应用的密封材料. (由于流体的粘度变化可能会改变电磁阀的额定压力评级)

阀门温度范围:

标配阀的环境温度：-0°F（-18℃）~ 104°F（40℃）；介质温度：0°F （-18℃）~ 150°F（65℃） – 特殊选项的阀门可承受远高于或远低于此环境温度和介质温度。

最大工作压差:

见以上表格

爆破压力:

5000 PSI

泄漏:

标配阀气泡气密性.

真空:

达5 微米*

电气特性:

线圈电压:

6.0 ~575V 交流 60 HZ. 5.4 ~515V 交流 50 HZ. — 3.0 ~ 300V 直流

额定功率:

交流 — 8.5 瓦, 直流 — 7.0 瓦

线圈结构:

模制F级. (H级可选)

典型的空中响应时间:

4 - 16 毫秒

运行速度:

高达每分钟动作600次

工作周期:

连续

机械特性:

主体:

不锈钢 (标配.), 黄铜 (可选.) 或铝 (可选.)

内部组件:

不锈钢

附件:

丁腈橡胶(标配.).其它橡胶材料可提供.*

孔口直径:

见以上表格

端口:

标配1/8” NPT (其它尺寸可提供).*

外罩:

扣环和1/2″ NPT导管 – 许多选项可提供*

列表:

大多数电磁阀具有UL和CSA认证.*

预期寿命:

数百万次的启闭循环, 取决于应用、润滑等

阀门重量:

扣环阀门: 172克，导管阀门: 200克

修理包:

见以上表格

选项:

端口位置, 流量控制, 橡胶材料可替换, 低功耗, 扁形端子线圈和防爆*

图纸

图纸:

Series 50 General Purpose Valves Conduit

MODEL 54

3WNO

CONDUIT COIL CONNECTION

MODEL 54 10-32 PORTS

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION "E"

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION "O"

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION "R"

3WNO

CONDUIT CONNECTION

MODEL 54 METERED BODY

3WNO

CONDUIT CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

CONDUIT COIL CONNECTION

Series 50 General Purpose Valves Conduit/Bracket Connection

MODEL 54 PIPED EXHAUST

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 10-32 PORTS

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION "E"

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION "O"

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION "R"

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 METERED BODY

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

CONDUIT/BRACKET CONNECTION

Series 50 General Purpose Valves Grommet

MODEL 54

3WNO GROMMET WITH LEADS

MODEL 54 10-32 PORTS

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION "E"

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION "O"

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

GROMMET WITH LEADS

MODEL 54 METERED BODY

3WNO

GROMMET WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

GROMMET WITH LEADS

Series 50 General Purpose Valves Grommet/Bracket Connection

MODEL 54

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 10-32 PORTS

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION "E"

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION "O"

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 METERED BODY

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

GROMMET/BRACKET WITH LEADS

Series 50 General Purpose Valves Splice Box

MODEL 54

3WNO

SPLICE BOX CONNECTION

MODEL 54 10-32 PORTS

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION "E"

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION "O"

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION "R"

3WNO

SPLICE BOX CONNECTION

MODEL 54 METERED BODY

3WNO

SPLICE BOX CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

SPLICE BOX CONNECTION

Series 50 General Purpose Valves Yoke Leads

MODEL 54

3WNO

YOKE WITH LEADS

MODEL 54 10-32 PORTS

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "E"

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "O"

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

YOKE WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

YOKE WITH LEADS

Series 50 General Purpose Valves Yoke Spades

MODEL 54

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 10-32 PORTS

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION "E"

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION "O"

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION "R"

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 METERED BODY

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 STUD MOUNT BODY

3WNO

YOKE WITH SPADE TERMINALS

流程图

流程图:

Flow chart Series 40-50

Series 40 Series 50 Flow Chart

命名规则表

命名规则:

电磁阀型号编码规则（除58系列外）

电磁阀型号编码规则（除58系列外）

* Consult representative or factory for options and specifications
